Need to stroke your R35? Fabre and Manley Performance Products, Inc. can help!

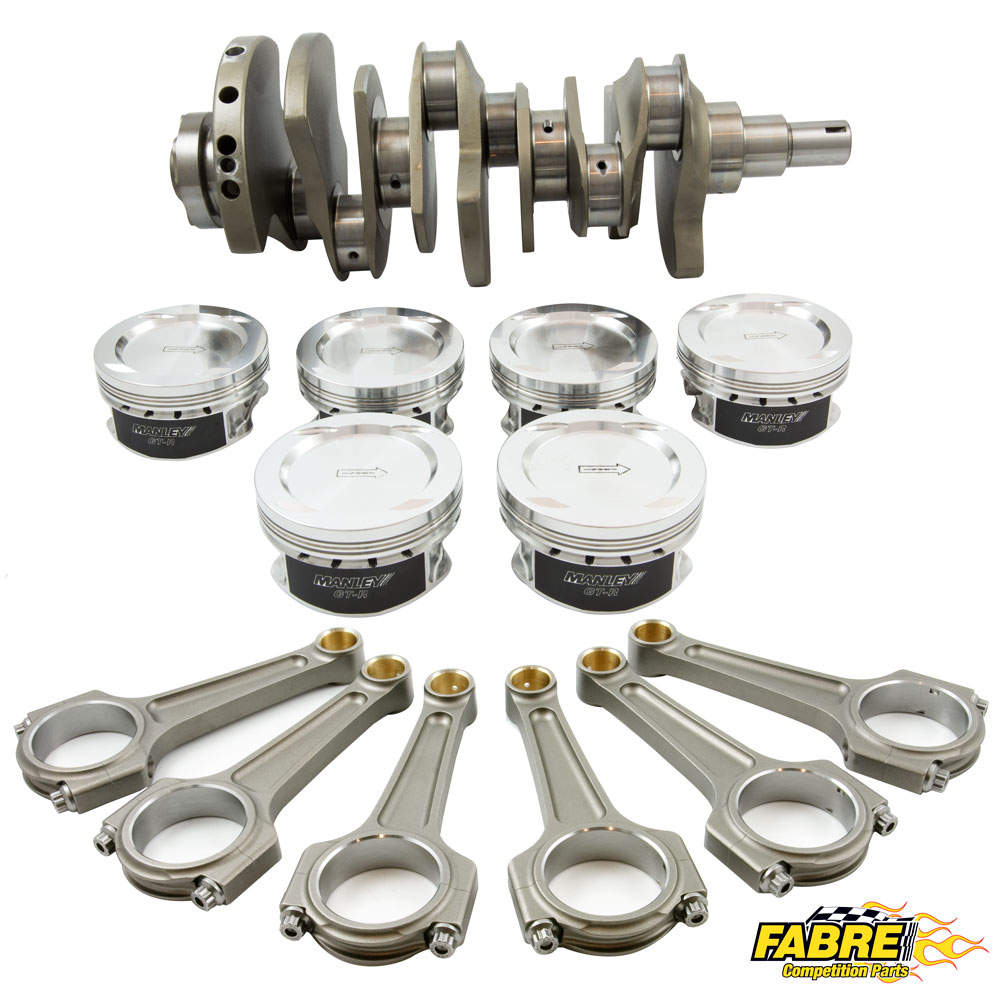

CRANKS
•Premium heat treated 4340 billet
•Multi-step heat treatment process and Nitrided for added strength
•Stress relieved, shot-peened, and 100% magnafluxed

RODS
•4340 material forgings or aircraft quality 300M alloy for extreme boost
•Fully machined, heat treated, stress relieved, shot peened and 100% magnafluxed
•Big and small end bores are final honed to a tolerance of ± .0002"
•Bend and twist is tightly controlled
•Weight matched to +/- 1.5 grams
•I-Beam and 300M comes standard with 7/16" ARP 2000 bolts

PISTONS
•High strength 2618 alloy forgings
•Exacting ring groove squareness to cylinder wall provides maximum horsepower
•Offset wrist pin design
•Moly coated skirts
•2.500" x .210" wall Premium Chrome Moly pin included
•9310 alloy .210" wall pin upgrades available P/N 42546
•Will accommodate +1mm valve sizes

RINGS
•1.2 x 1.2 x 3mm (627 Series)
•1.2 x 1.5 x 3mm (626 Series)
•Total Seal Premium Steel top rings with Napier second rings and 9-13 lb. tension oil rings included in piston kits

BEARINGS
•Premium ACL Race Series with narrowed rod bearings
